Bottle Blowing System
5 Gallon Semi Automatic Plastic Bottle Blowing Machine
- 1 PCS
- T/T,L/C,Western Union,Money Gram,Cash.
- China,JiangSu
- J&D WATER
- OEM, ODM, Customized
- CE TUV SGS FCC
- Shipped within 40 days
- EXW,FCA，FAS，FOB,CFR,CIF,CPT,CIP
◇◆ Application

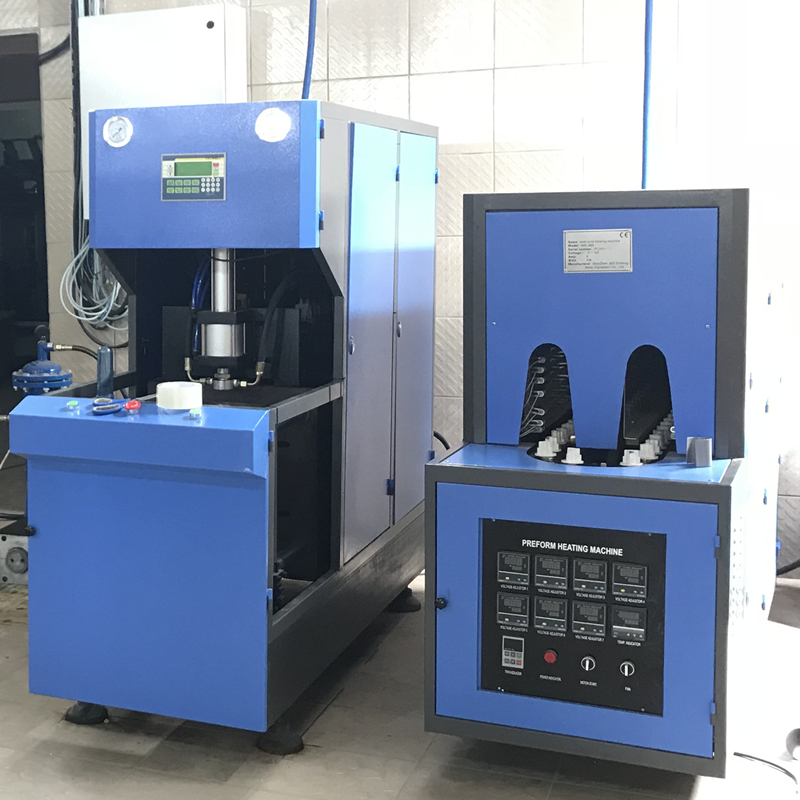

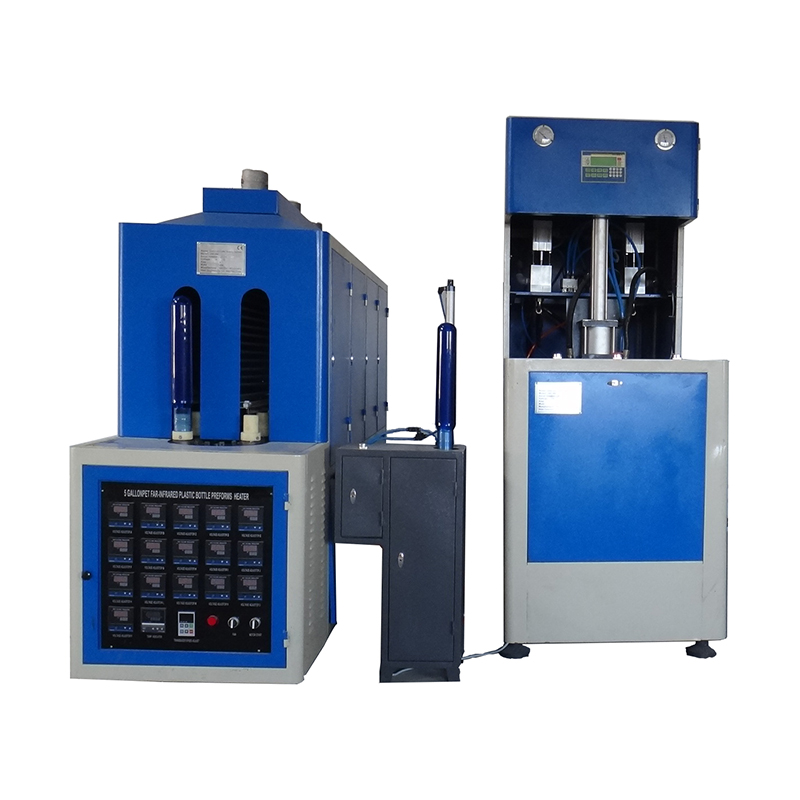

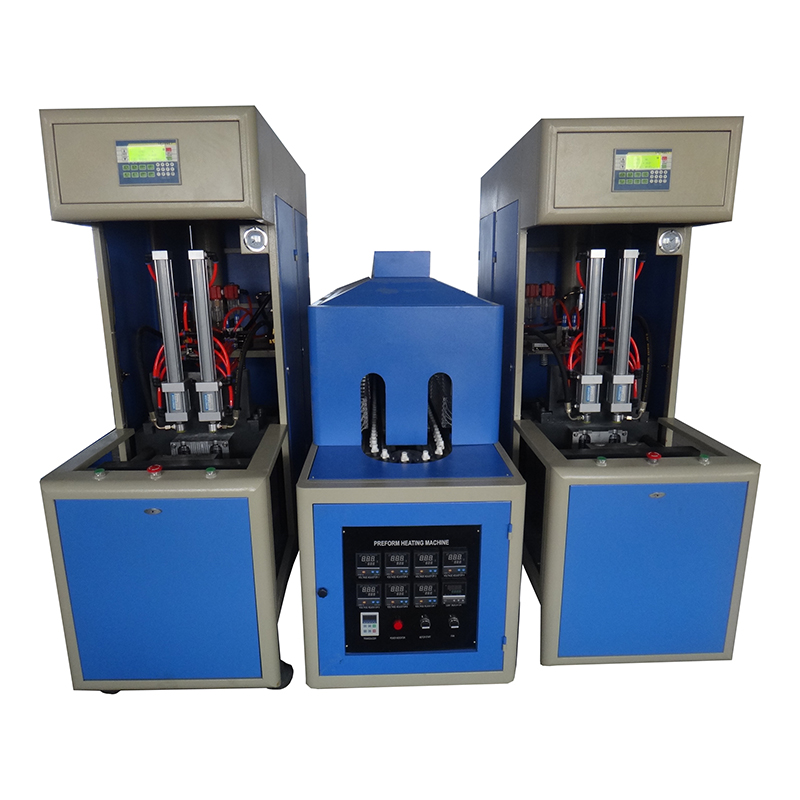

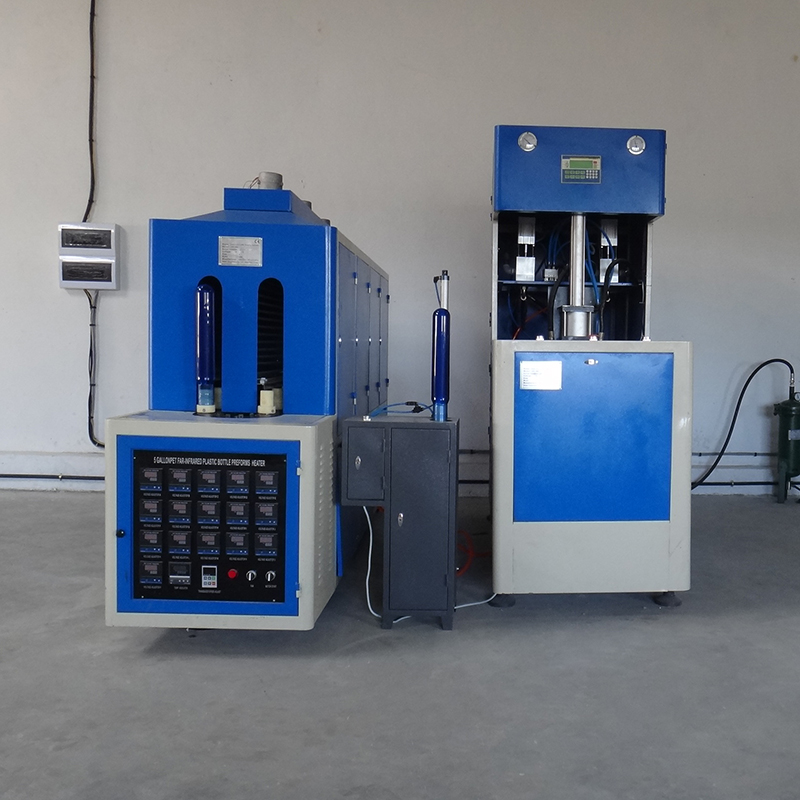

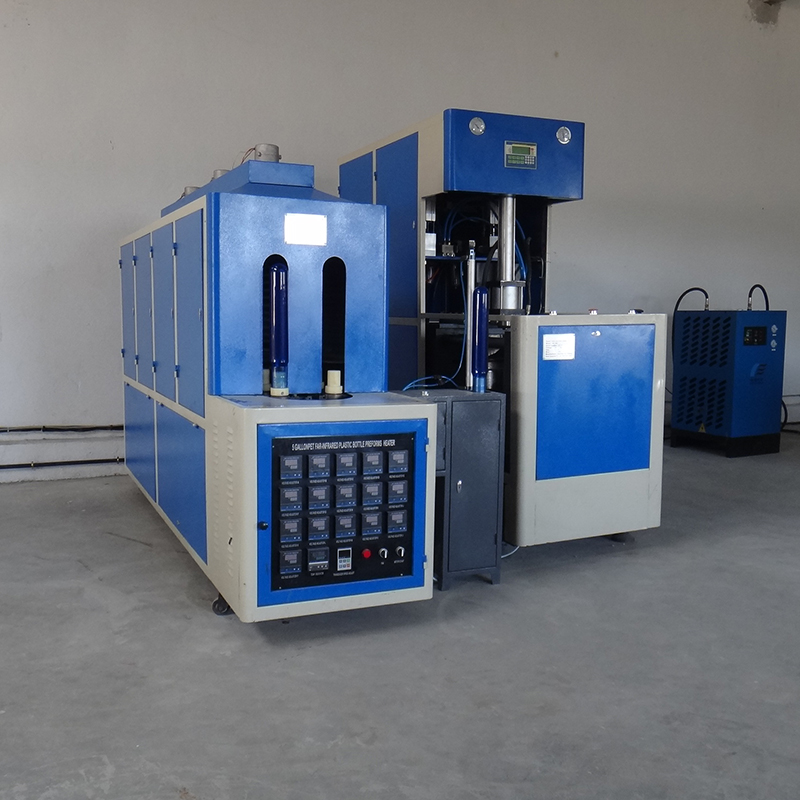

1.ShenZhen ZhangJiaGang J&D Packing Machinery Co., Ltd.’s Semi Automatic Bottle Blowing Machine JND-90 is especially designed for producing 4 gallon 5 gallon 6 gallon bottles and 25L wide mouth jars; Its Max. Output is up to 90 BPH for 5-gallon bottles and even could reach 120 bottles per hour in certain case.
2.Its of JNDWATER Machine’s Main components
(1) main units;
(2) rotary infrared heater: the infrared heater with high penetrative force can heat the inside and outside of preform simultaneously, which help giving our bottle blow machines high shaping ability.
3. Easy operation for its high automation: only one operator is needed and the operator only need to put heated preform into the blow mold and press the switch; the following processes will be automatically completed.
General Information JND-90 Clamping Force 30T Clamping Stroke 330mm Max. Stretching Stroke 450mm Bottom Moving Stroke -- Number of Cavities 1 Cavity Theoretical Output 90BPH Max. Mould Thickness 380mm Space Between Tie Bars 480*550mm Electrical System Voltage Standard AC 380V/50HZ or special order Number of Heating Zone 2 Sections Total Power(Full Loaded) 15kw Container Max. Container Volume 25L Neck Diameter Range 65mm Max. Container Diameter 330mm Max. Container Height 550mm Auxiliary System Low Air compressor 8-10Bar High Air compressor 30Bar Air Dryer 2.0/30 Dimension & Weight (L×W×H) Blow molding machine 1550*820*2000mm Preform Autoloader -- Net Weight 1.4Ton ZhangJiaGang J&D Packing Machinery Co., Ltd. is China's leading manufacturer of bottling equipment and supply the global market with a complete range of bottling equipment and accessories. 1, the guarantee of our machines is at least two years, also we will send 3% of sales value as spare parts along with the machines free of charge, the parts will be enough for at least 3 years for the normal operation of machines.
J&D Water can supply the following equipment:
* water dispensers, water filtration systems and all associated equipment required for a bottling factory including bottle blowing, labeling and packaging equipment.
*3000-36000BPH mineral water & pure water processing and filling lines
2, we can train your engineers in our factory free of charge. It means you can send your engineers to our factory to study and training, we have rich experiences for the training, it is the good way to make sure that you can operate and maintain our machines successfully and for long term normal use.
3, we will offer you detail manual books for our machines, also we will make one Video CD to show you how to install and maintain the machines, the CD is the movie for the machines, it will be the great references for you to maintain the machines for the long time.
4,another way is that we can send our engineers to your factory to install the machines and train your engineers, we think it is the best way to help you operate and maintain the machines. We have been doing the install jobs for our overseas customers for many years. In this way you need to pay for the travel costs for our engineers, because our initial quotes don’t include the travel costs.
5, All of the electrical parts in our machines are CE or TUV approved. We can offer you UL or CUL/CSA approved parts if you need for the North American markets. The good electrical parts are the guarantee for the good quality for our machines.
