Bottle Blowing System

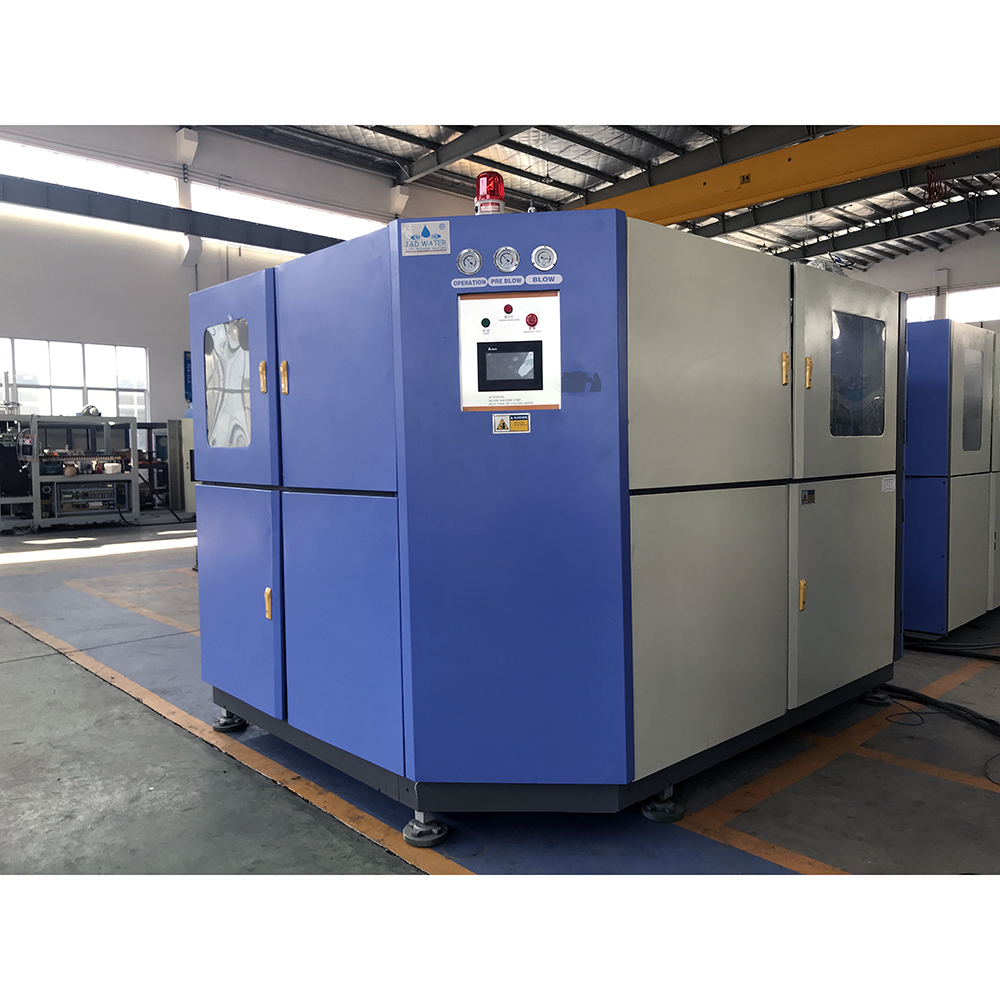

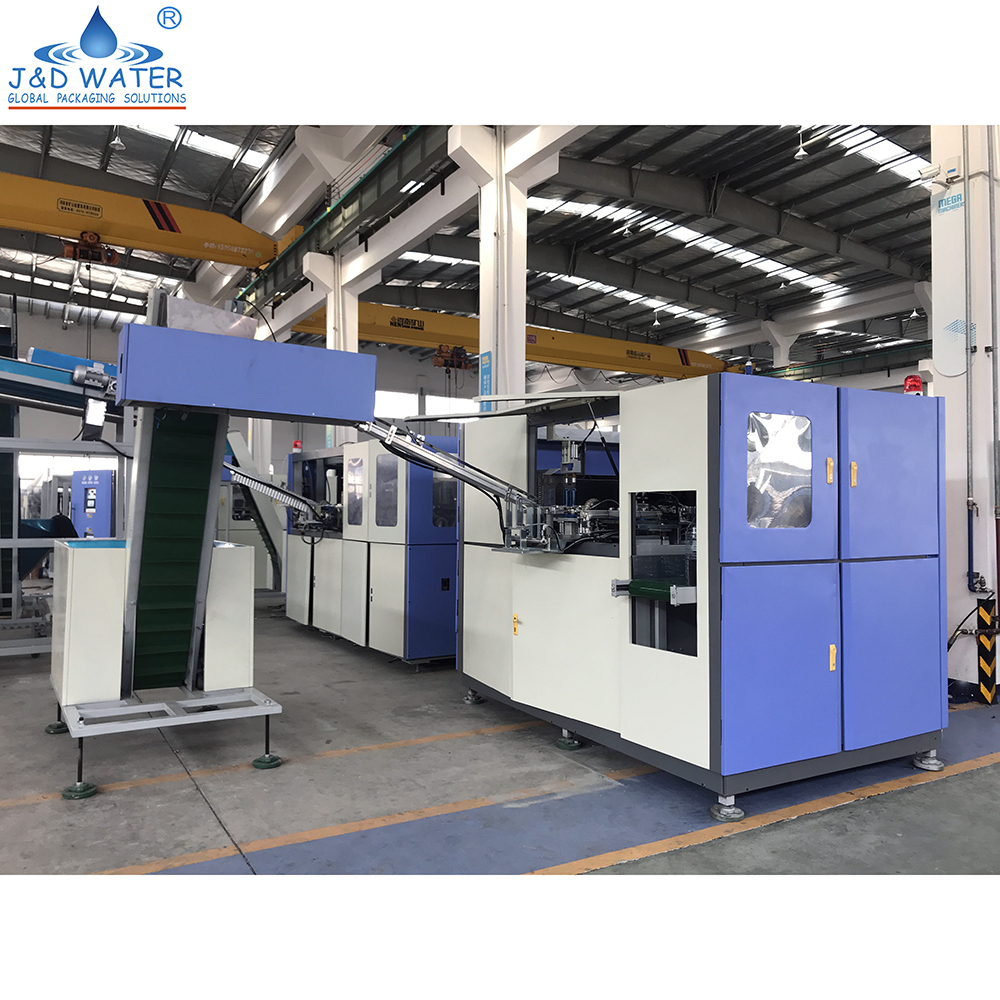

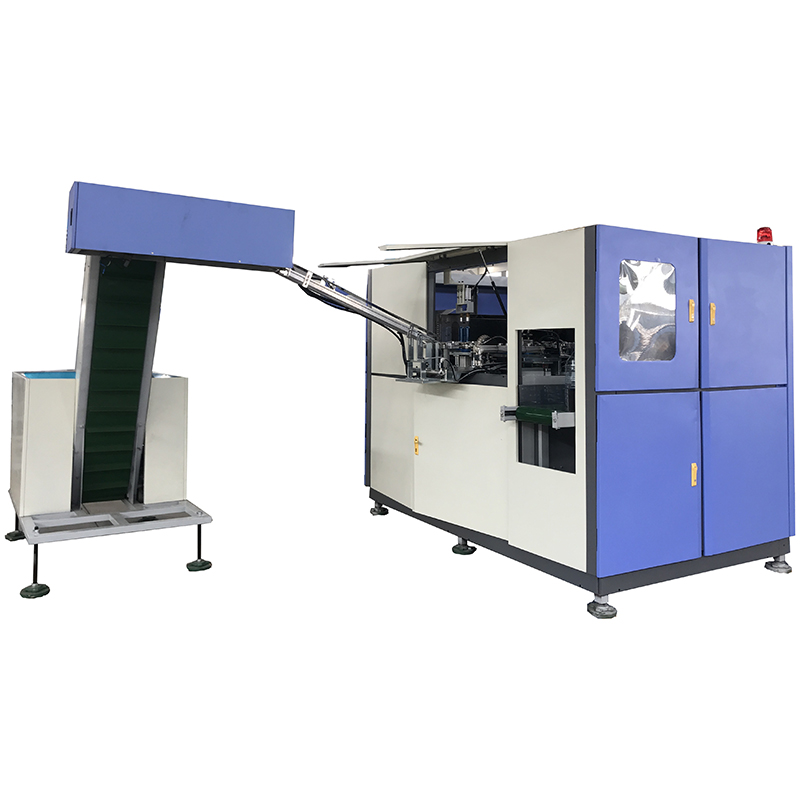

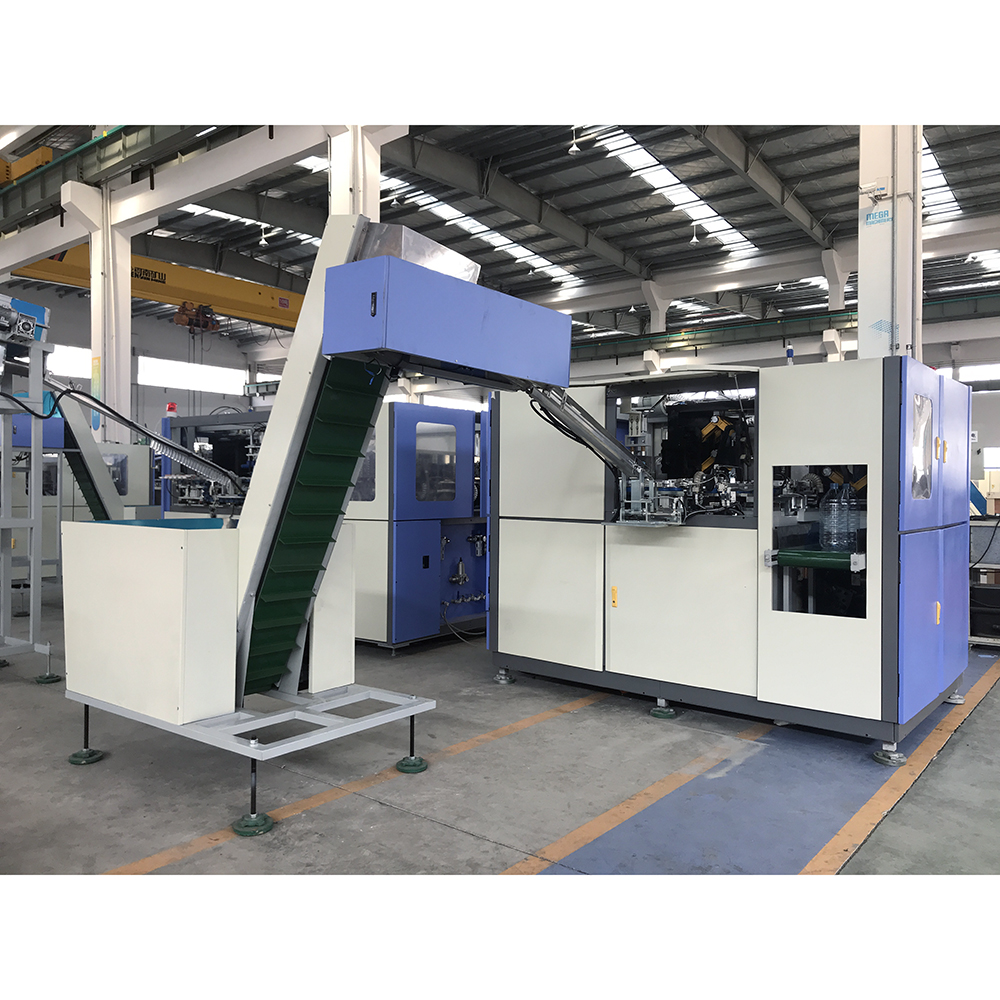

Automatic Stretch Plastic Bottle Blow Molding Machine

MOQ
1 PCS
Payment
T/T,L/C,Western Union,Money Gram,Cash.
Place of Origin
China,JiangSu
Brand
J&D WATER
Service
OEM, ODM, Customized
Certification
CE TUV SGS FCC
Delivery Time
Shipped within 40 days
Terms of trade
EXW,FCA,FAS,FOB,CFR,CIF,CPT,CIP

◇◆ Application


ZhangJiaGang  J&D  Packing  Machinery  Co.,  Ltd.'s it only needs one worker to operate and the total production is completed automatically. JND series such as JND-E4000 of standrad automatic blomolding machine is widely used to produce varieties of PET plastic container and package for mineral water, beverage, oil, cosmetic and hot infusion, etc.JNDWATER its wide utilization and reliable performance make it become popular and attractive to all bottle manufacturers. Controlled by micro-computer with each main process fitted with safety of self-locking,

◇◆ Features

1.While the high pressure sealing system with automatic adjustment permits that mold sealing is under condition of 100% air tightness before blowing, and avoid air energy loss owing to incomplete air tightness. With such effective control over air energy and power, lower costs and improved efficiency are achieved..

2.The biggest advantage of the blow molding machine is energy saving.Adopting high pressure clamping, JND automatic stretch blow mold machine makes self-adjustment in accordance with the different pressure needed during production, thus ensuring the super clamping force.


◇◆Product  Details




JD WATER-Find Pet Stretch Blow Moulding Machine Pet Blowing Machine Price From Jd
JD WATER-Find Pet Stretch Blow Moulding Machine Pet Blowing Machine Price From Jd-1

◇◆ Technical Parameters

General Information

JND-E1500

JND-E4000

JND-E5500

Clamping Force

150KN

370KN

565KN

Clamping Stroke

130mm

130mm

130mm

Max. Stretching Stroke

370mm

370mm

370mm

Bottom Moving Stroke

70mm

70mm

70mm

Number of Cavities

2 Cavity

4 Cavity

6 Cavity

Theoretical Output

1500BPH

3500BPH

4300BPH

Max. Mold Thickness

300MM

300MM

300MM

Space Between Tie Bars

550×275mm

640×380mm

740×535mm

Voltage Standard

380v/3PH/50Hz or special order

Number of Heating Zone

2 Sections

4 Sections

4 Sections

Total Power (Full Loaded)

15KW

25KW

30KW

Max. Container Volume

2L

2L

2L

Neck Diameter Range

16-38mm

16-38mm

16-38mm

Max. Container Diameter

100mm

100mm

100mm

Max. Container Height

360mm

360mm

360mm

Low Air compressor

8-10Bar

8-10Bar

8-10Bar

High Air compressor

30-40Bar

30-40Bar

30-40Bar

Blow molding machine

2.3×1.4×2.7m

3.6×1.63×2.7m

5.0×1.83×2.7m

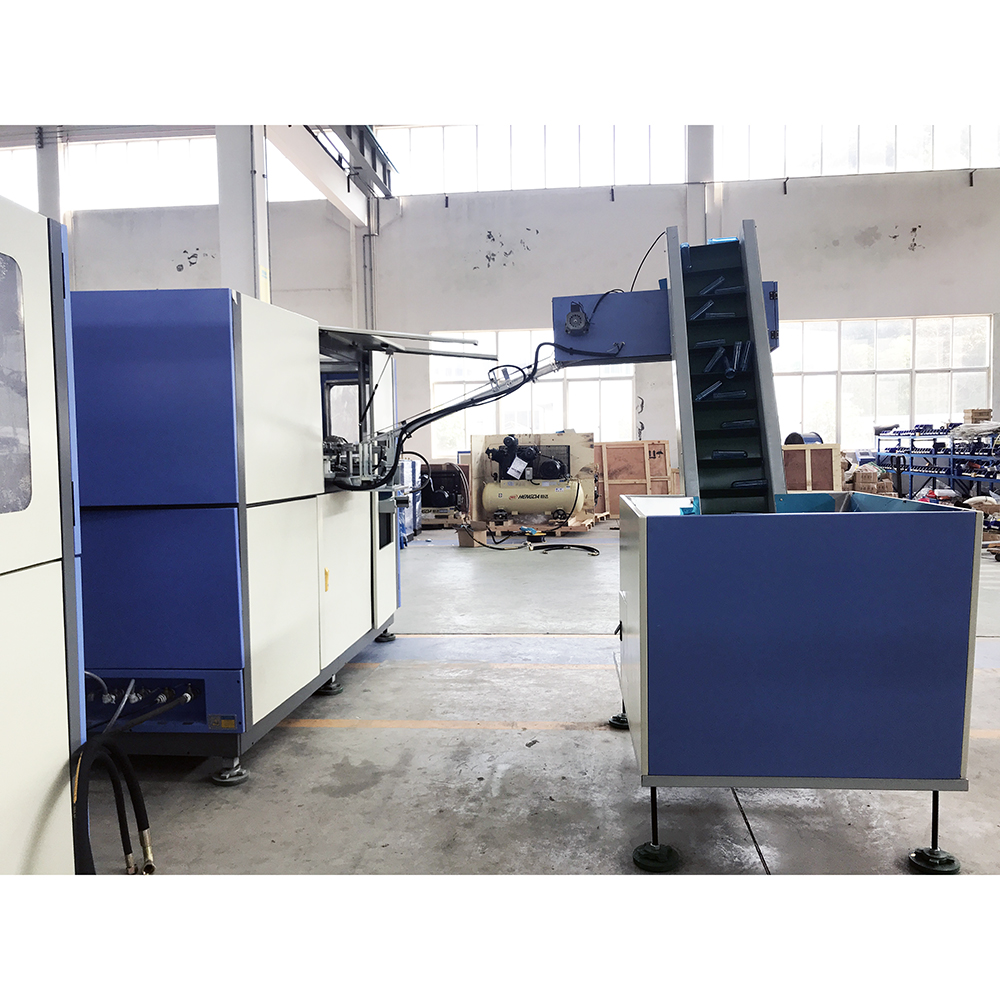

Preform Auto loader

1.3×0.85×2.4m

1.05×0.98×2.45m

1.05×0.98×2.45m

Net Weight

4T

4T

4T

Company Profile

ZhangJiaGang  J&D  Packing  Machinery  Co.,  Ltd. is China's leading manufacturer of bottling equipment and supply the global market with a complete range of bottling equipment and accessories.
J&D Water can supply the following equipment:
* water dispensers, water filtration systems and all associated equipment required for a bottling factory including bottle blowing, labeling and packaging equipment.
*3000-36000BPH mineral water & pure water processing and filling lines


Our Services

1, the guarantee of our machines is at least two years, also we will send 3% of sales value as spare parts along with the machines free of charge, the parts will be enough for at least 3 years for the normal operation of machines.
2, we can train your engineers in our factory free of charge. It means you can send your engineers to our factory to study and training, we have rich experiences for the training, it is the good way to make sure that you can operate and maintain our machines successfully and for long term normal use.
3, we will offer you detail manual books for our machines, also we will make one Video CD to show you how to install and maintain the machines, the CD is the movie for the machines, it will be the great references for you to maintain the machines for the long time.
4,another way is that we can send our engineers to your factory to install the machines and train your engineers, we think it is the best way to help you operate and maintain the machines. We have been doing the install jobs for our overseas customers for many years. In this way you need to pay for the travel costs for our engineers, because our initial quotes don’t include the travel costs.
5, All of the electrical parts in our machines are CE or TUV approved. We can offer you UL or CUL/CSA approved parts if you need for the North American markets. The good electrical parts are the guarantee for the good quality for our machines.
