◇◆ APPLICATION

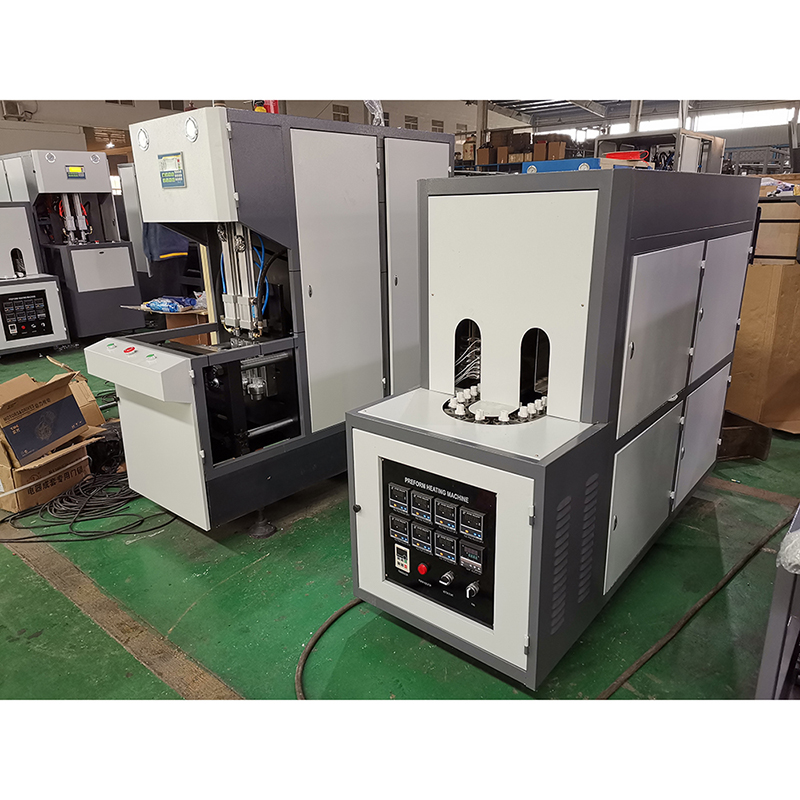

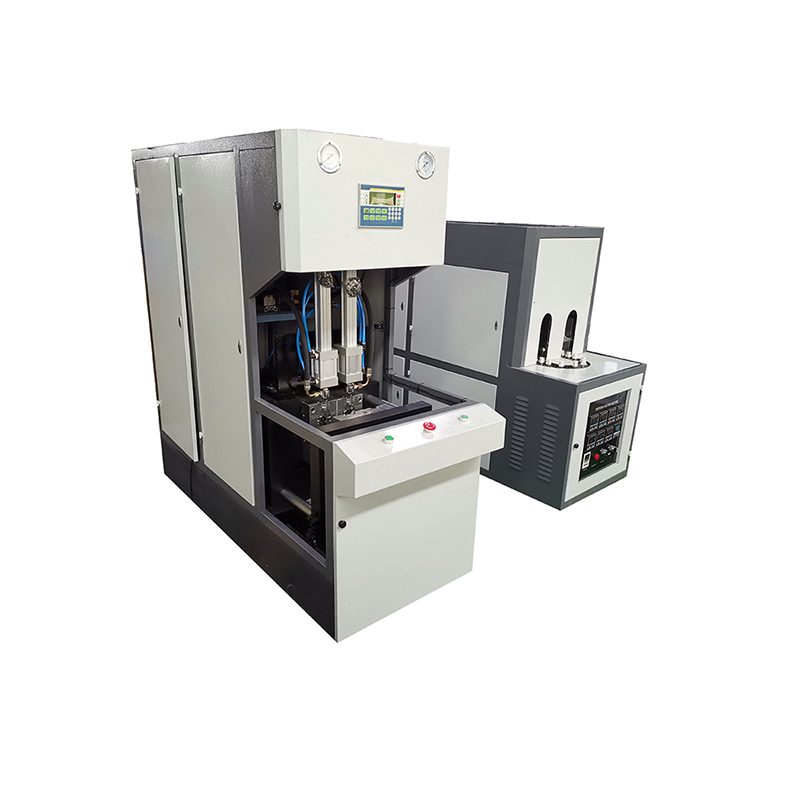

Applications of semi-auto reheat stretch blow molding machine

ShenZhen J&D Drinking Water Equipment Co.,Ltd.’s semi-auto reheat stretch bottle making machine is suitable for manufacturing carbonated beverage bottles, mineral water bottles, cosmetics bottles and hot-filling bottles, especially oil bottles with handles.

jndwater ‘s this machine especial for 250ml-2000ml pet bottle,3-10L bottle is ok.

Blowing capacity:400bph-2000bph.

Bottle size:0.1L-10L

Plastic material:PET

Brief Introduction on Semi-auto Reheat Stretch Blow Molding Machines

• 1. The reheat stretch blow molding machine is designed according to CE standard.

• 2. Accurate and stable parameter control for the adoption of microcomputer controlling system.

• 3. Simple and safety operation; and only one operator is needed.

•

•


  Specification 1




  Model	JND-880
  Clamping Force	80KN
  Number of Cavities	2
  Theoretical Output	0.5L:880BPH
  Mould Open Stroke	150mm
  Max. Mould Thickness	200mm
  Space Between Tie Bars	340*500mm
  Electrical System
  Voltage Standard	380V/3PH/50HZ or special order
  Total Power(Full Loaded)	7kw
  Container
  Max. Container Volume	0.1-2.5L(2cav)
  Max. Container Diameter	110mm
  Max. Container Height	360mm
  Auxiliary System
  Low Air compressor	8-10Bar
  High Air compressor	30Bar
  Dimension & Weight (L×W×H)
  Blow molding machine	1500*600*1750mm
  Preform Auto loader	1800*630*1380mm
  Net Weight	0.82Ton




  Specification 2




  Model	JND-880B
  Clamping Force	120KN
  Number of Cavities	1 Cavity
  Theoretical Output	5L:400BPH
  Mould Open Stroke	240mm
  Max. Mould Thickness	250mm
  Space Between Tie Bars	340*540mm
  Electrical System
  Voltage Standard	380V/3PH/50HZ or special order
  Total Power(Full Loaded)	8kw
  Container
  Max. Container Volume	0.1-5L(1cav)
  Max. Container Diameter	220mm
  Max. Container Height	400mm
  Auxiliary System
  Low Air compressor	8-10Bar
  High Air compressor	30Bar
  Dimension & Weight (L×W×H)
  Blow molding machine	1700*600*1750mm
  Preform Auto loader	1800*630*1380mm
  Net Weight	0.94Ton




  Specification 3




  Model	JND-880C
  Clamping Force	120KN
  Number of Cavities	1 Cavity
  Theoretical Output	10L:350BPH
  Mould Open Stroke	380mm
  Max. Mould Thickness	300mm
  Space Between Tie Bars	480*540mm
  Electrical System
  Voltage Standard	380V/3PH/50HZ or special order
  Total Power(Full Loaded)	10kw
  Container
  Max. Container Volume	0.1-5L(1cav)
  Max. Container Diameter	220mm
  Max. Container Height	400mm
  Auxiliary System
  Low Air compressor	8-10Bar
  High Air compressor	30Bar
  Dimension & Weight (L×W×H)
  Blow molding machine	1560*720*1750mm
  Preform Auto loader	1800*630*1380mm
  Net Weight	1.0Ton

  Company Profile

  ZhangJiaGang  J&D  Packing  Machinery  Co.,  Ltd. is China's leading manufacturer of bottling equipment and supply the global market with a complete range of bottling equipment and accessories.
  J&D Water can supply the following equipment:
  * water dispensers, water filtration systems and all associated equipment required for a bottling factory including bottle blowing, labeling and packaging equipment.
  *3000-36000BPH mineral water & pure water processing and filling lines






  Our Services

  1, the guarantee of our machines is at least two years, also we will send 3% of sales value as spare parts along with the machines free of charge, the parts will be enough for at least 3 years for the normal operation of machines.
  2, we can train your engineers in our factory free of charge. It means you can send your engineers to our factory to study and training, we have rich experiences for the training, it is the good way to make sure that you can operate and maintain our machines successfully and for long term normal use.
  3, we will offer you detail manual books for our machines, also we will make one Video CD to show you how to install and maintain the machines, the CD is the movie for the machines, it will be the great references for you to maintain the machines for the long time.
  4,another way is that we can send our engineers to your factory to install the machines and train your engineers, we think it is the best way to help you operate and maintain the machines. We have been doing the install jobs for our overseas customers for many years. In this way you need to pay for the travel costs for our engineers, because our initial quotes don’t include the travel costs.
  5, All of the electrical parts in our machines are CE or TUV approved. We can offer you UL or CUL/CSA approved parts if you need for the North American markets. The good electrical parts are the guarantee for the good quality for our machines.
