Filling Machine

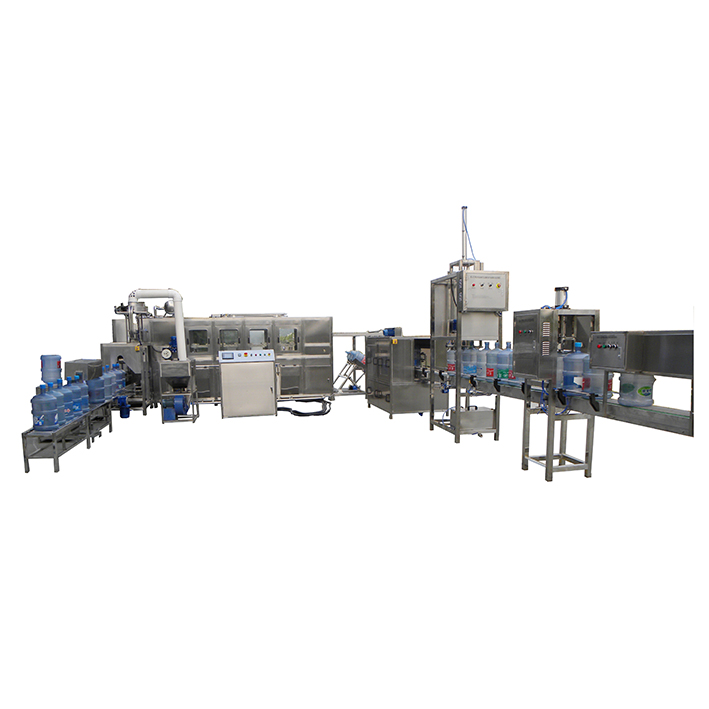

5 Gallon 3 in 1 Automatic Liquid Filling Machine
- 1 PCS
- T/T,L/C,Western Union,Money Gram,Cash.
- China,JiangSu
- J&D WATER
- OEM, ODM, Customized
- CE TUV SGS FCC
- Shipped within 40 days
- EXW,FCA，FAS，FOB,CFR,CIF,CPT,CIP
◇◆ Application
ZhangJiaGang J&D Packing Machinery Co., Ltd. 's JND100 series 5 Gallon Automatic Filling Machine is specially designed to fill purified water, distilled water, mineral water and other bacteria free liquids.the equipment is applied with 5 gallon bottle (1 GAL, 2 GAL, 3 GAL, 4 GAL, 6GAL are also applied).as the 5 gallon water filling machine integrates bottle washing, filling, lid mounting, lid pressing and finished product delivering together, there are many models with different output options.it's a good choice of water plants.
For operations, the water filling machine can be configured with the following machines: the bottle lid pre-heater, auto decapper, empty bottle leakage detector, bottle external-washing machine, bottle exterior-washing machine, bottle auto loading machine, thermal shrinkage film machine ,lamp inspection equipment ,and other equipment.
It JNDWATER features the integration of advanced technology and working principle, high level of automation and easy operat
Feature:
1.Under-pressure protection: when incoming air's pressure is ≦0.5MPa, the equipment will be automatically stopped;
2. Automatic break protection in case of power leakage and short circuit;
3. Water-shortage protection: when the level of the water tank is lower than that of the liquid switch, the equipment will be automatically stopped.
Remarks: ShenZhen J&D Drinking Water Equipment Co., Ltd. can add other functions as customer's requirements preference: hot tank heating washing, bottle external washing, cap washing, capacity note and man-machine control.
ZhangJiaGang J&D Packing Machinery Co., Ltd. is China's leading manufacturer of bottling equipment and supply the global market with a complete range of bottling equipment and accessories. 1, the guarantee of our machines is at least two years, also we will send 3% of sales value as spare parts along with the machines free of charge, the parts will be enough for at least 3 years for the normal operation of machines.Model JND100 JND100 Output 450BPH 600BPH Voltage AC220V/380V±5% 50HZ/60HZ Rated Power 19.1kW 24.8kW Washing heads 3×7 4×9 Filling heads 3×1 4×1 Capping heads 1×3 1×1 Bottle size Ф270×490×Ф56 mm Cap size Ф58×40(Tail: L×W=18×7.5) mm Air pressure 0.5~0.6MPa 0.5~0.6MPa N.W. 950Kg 1450Kg Overall Dimension(MM) 4390×1100×1760 4710×1520×1760 3000×800×1760 3220×800×1760
J&D Water can supply the following equipment:
* water dispensers, water filtration systems and all associated equipment required for a bottling factory including bottle blowing, labeling and packaging equipment.
*3000-36000BPH mineral water & pure water processing and filling lines
2, we can train your engineers in our factory free of charge. It means you can send your engineers to our factory to study and training, we have rich experiences for the training, it is the good way to make sure that you can operate and maintain our machines successfully and for long term normal use.
3, we will offer you detail manual books for our machines, also we will make one Video CD to show you how to install and maintain the machines, the CD is the movie for the machines, it will be the great references for you to maintain the machines for the long time.
4,another way is that we can send our engineers to your factory to install the machines and train your engineers, we think it is the best way to help you operate and maintain the machines. We have been doing the install jobs for our overseas customers for many years. In this way you need to pay for the travel costs for our engineers, because our initial quotes don’t include the travel costs.
5, All of the electrical parts in our machines are CE or TUV approved. We can offer you UL or CUL/CSA approved parts if you need for the North American markets. The good electrical parts are the guarantee for the good quality for our machines.
