Packing Machine
Auto Sealing and Shrinking Packager
- 1 PCS
- T/T,L/C,Western Union,Money Gram,Cash.
- China,JiangSu
- J&D WATER
- OEM, ODM, Customized
- CE TUV SGS FCC
- Shipped within 40 days
- EXW,FCA，FAS，FOB,CFR,CIF,CPT,CIP
◇◆ Application

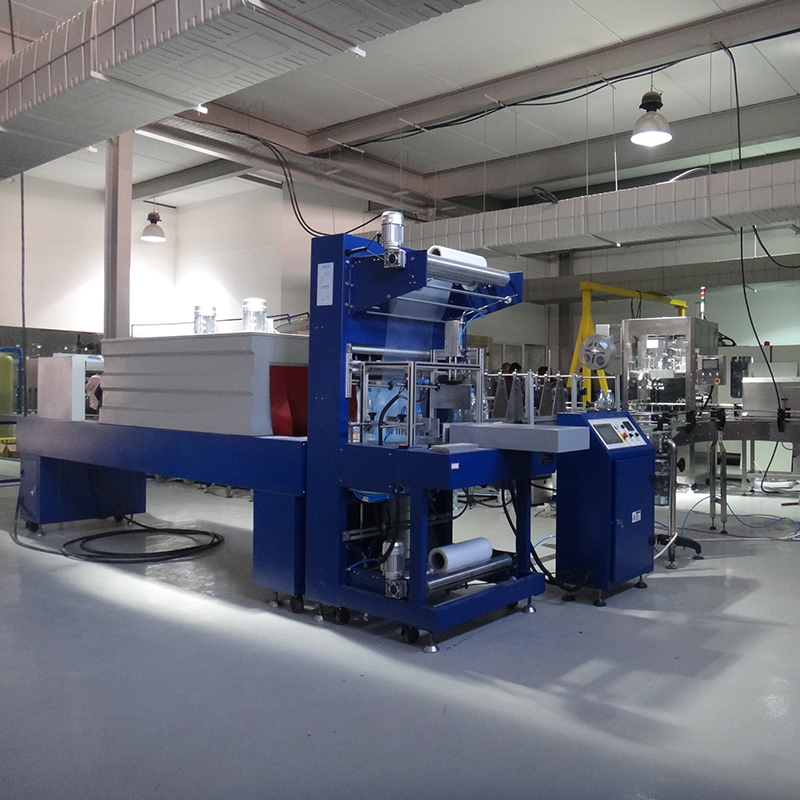

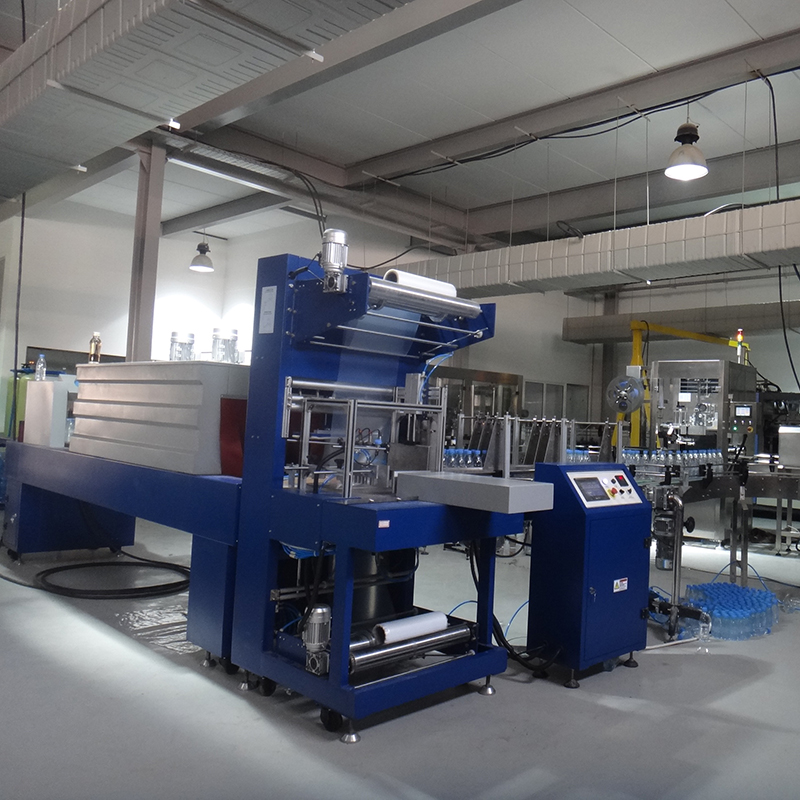

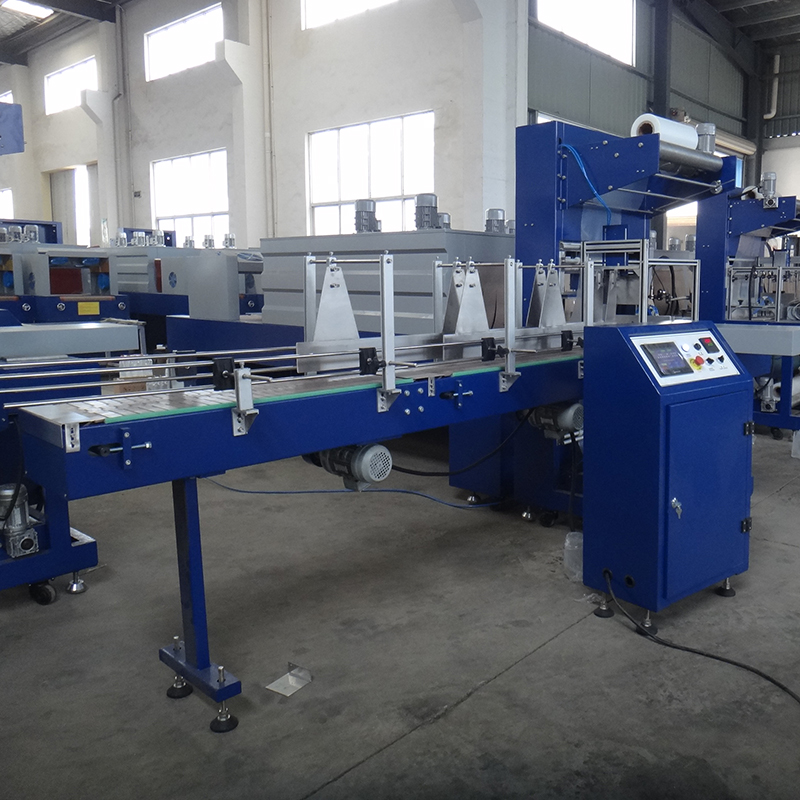

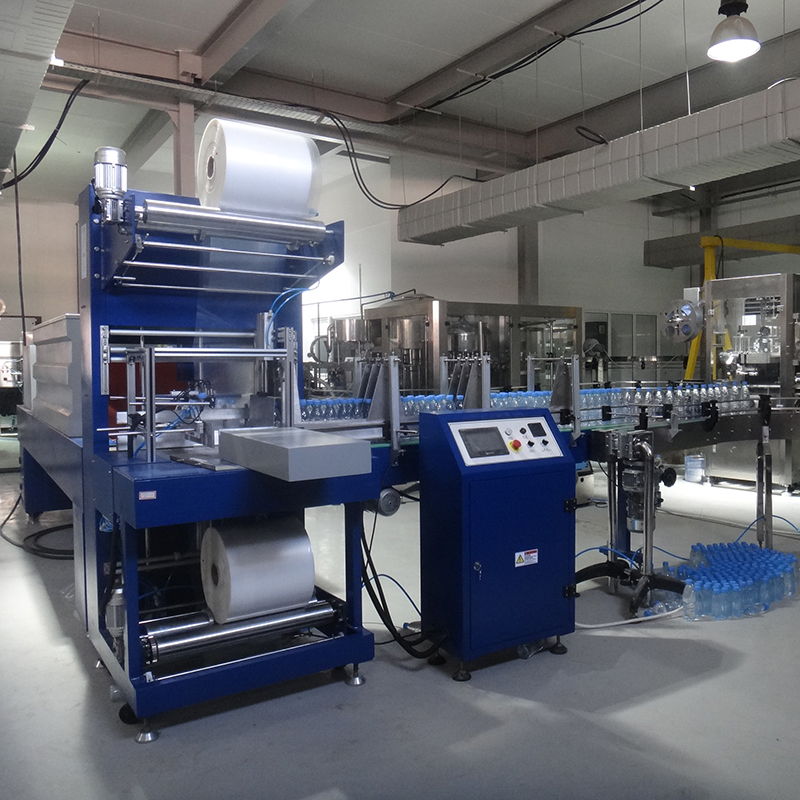

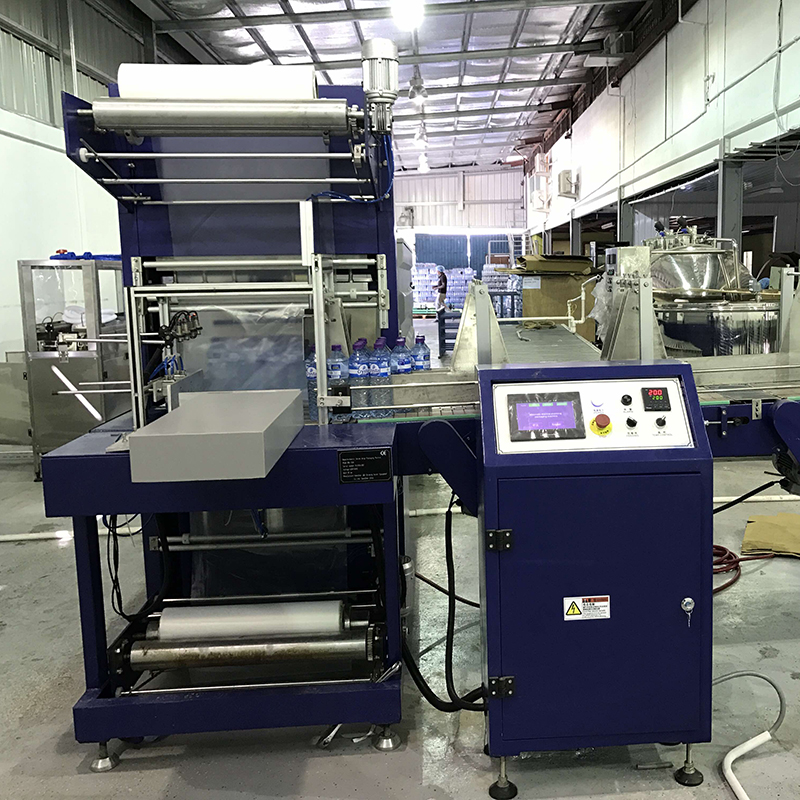

The JNDWATER JND-150A series automatic sealing and shrink packaging machines can meet a variety of shrink packaging requirements, from canned product packaging to food industry boxed products, beverage and beverage filling plants, medical industry and other secondary packaging. Can meet the vast majority of product packaging.
Feature：
1. PLC control guaranteed a stable performance and precise performance control.
2. Simple operation: fully automatic material feeding, bottle and can management, shrink film wrapping and shaping.
3. Shrink film transmitting system is equipped with sensor switch, which gives a precise control of film length and as a result reduced wastage.
4. Advanced swirl-wind circulative structure and multilayer insulation material help accelerating pack-shaping, which facilitates storing and transportation.
◇◆ Technical Parameters
| Model | JND-150A |
| External Dimension | L5050×W3300×H2200mm |
| Main Machine | L1180×W1080×H2370 mm |
| Shrink Oven | L3890×W1050×H2040 mm |
| Electric Cabinet | L1250×W780×H1100 mm |
| Total Weight | 1.2T |
| Heat Shrink Oven Dimension | L3700×W920×H1800 mm |
| Max. Packaging Size | L600×W400×H350 mm |
| Packaging Speed | 8-15PACKAGES/MIN |
| Conveyor Belt | 920 (200)mm |
| Working Power | AC380V 50/60HZ |
| Working Pressure | 0.6-0.8MPA |
| Total Power | 20kW |
ZhangJiaGang J&D Packing Machinery Co., Ltd. is China's leading manufacturer of bottling equipment and supply the global market with a complete range of bottling equipment and accessories.
J&D Water can supply the following equipment:
* water dispensers, water filtration systems and all associated equipment required for a bottling factory including bottle blowing, labeling and packaging equipment.
*3000-36000BPH mineral water & pure water processing and filling lines
1, the guarantee of our machines is at least two years, also we will send 3% of sales value as spare parts along with the machines free of charge, the parts will be enough for at least 3 years for the normal operation of machines.
2, we can train your engineers in our factory free of charge. It means you can send your engineers to our factory to study and training, we have rich experiences for the training, it is the good way to make sure that you can operate and maintain our machines successfully and for long term normal use.
3, we will offer you detail manual books for our machines, also we will make one Video CD to show you how to install and maintain the machines, the CD is the movie for the machines, it will be the great references for you to maintain the machines for the long time.
4,another way is that we can send our engineers to your factory to install the machines and train your engineers, we think it is the best way to help you operate and maintain the machines. We have been doing the install jobs for our overseas customers for many years. In this way you need to pay for the travel costs for our engineers, because our initial quotes don’t include the travel costs.
5, All of the electrical parts in our machines are CE or TUV approved. We can offer you UL or CUL/CSA approved parts if you need for the North American markets. The good electrical parts are the guarantee for the good quality for our machines.
